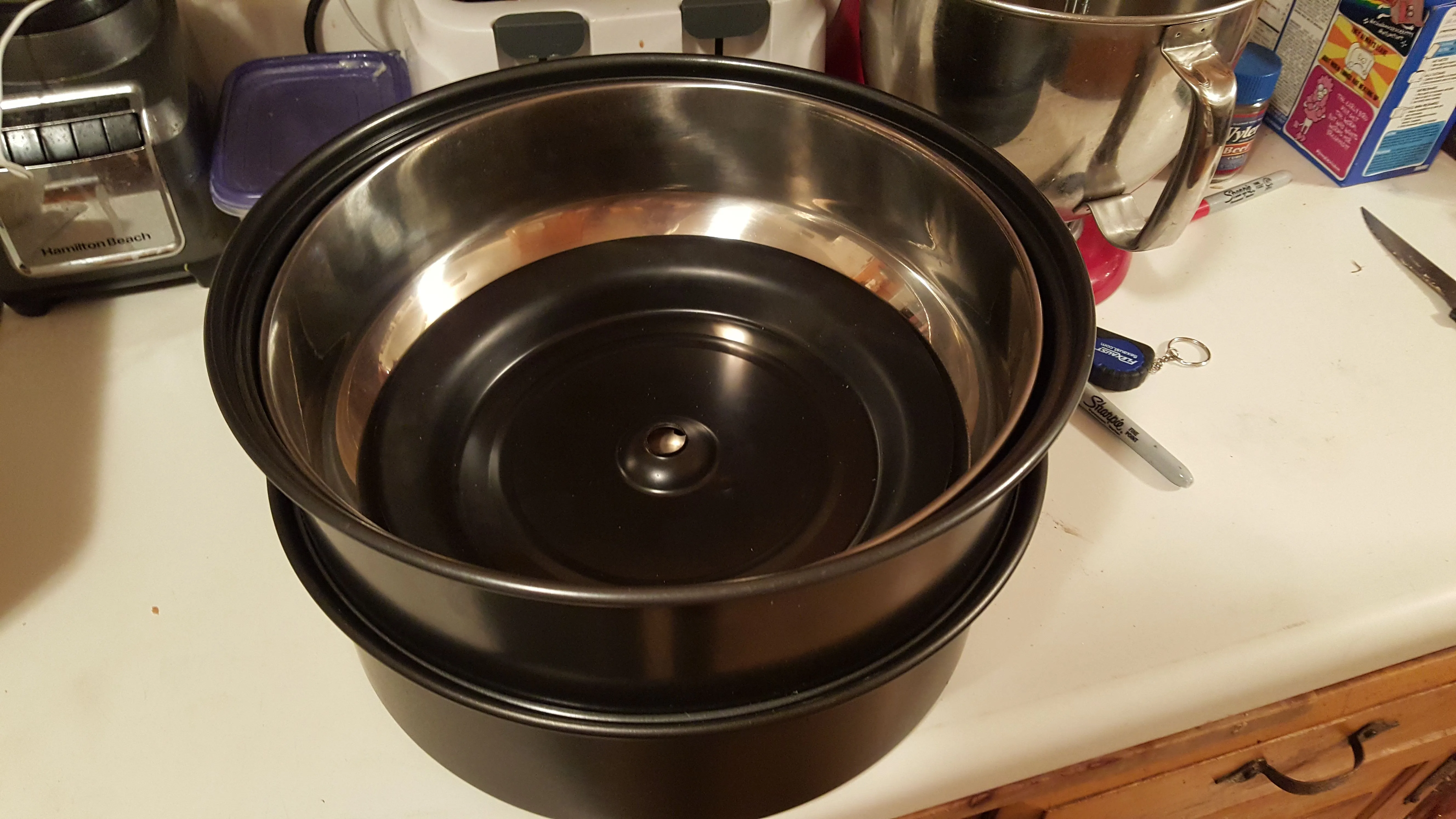

I've been looking at another TO roaster build, and seem to like the concept of high speed "bats", aka stirring arms, to fluidize the bean mass. This means needing a different motor, and a different build. So when I purchased the turbo oven, since it was brand new, it had these parts included:
So I started to think on how to incorporate them into my design. My first thought was to put perforated steel between the two sections and have a roasting bowl sit on top of it with a gap between the glass lid of the TO for chaff to blow out and down and be collected on the perf steel...baffles in the lower pan would ensure chaff would not blow back up into the roaster. So I totally deconstructed my Stir Crazy, really only intending to keep the steel pan, but of course will put the switch away for use in some other well thought out project LOL!
So I went Thrift shopping and found an orphaned lid to a pressure steamer...removed the knob...drilled the appropriate holes in order to attach the stir plate of the popper...like this:
There is a bit of a gap between the edge of the SC plate and the steamer lid due to the lid's curvature...I am open to suggestions on how to deal with this gap.
So the threaded studs on the bottom of the SC plate extend roughly 2.25" from the bottom of the steamer lid (formerly the top of the steamer lid...lol). When inserted into the TO pan set, the top of bowl created by the steamer lid sits right at the level of the lip holding the TO lid. There is also a slight gap between the sides of the TO pan set and the new roaster pan set. This gap will allow me to still provide for chaff collection. The 2.25" gap at the floor of the TO pan set will be available to install a burner plate pulled from an electric fry pan or wok in order to add additional conduction heat if desired for a wider range of roast profiles...as used on the roaster build I am imitating. Also allows for the addition of some internal insulation to shield the motor which will be installed below the TO pan set in some fashion. The motor will be an AC 25 Watt speed control gear motor capable of at least 350-400 rpm with a speed control device so it can be run at lower speeds. Here are the final pics of where I am at for now.
